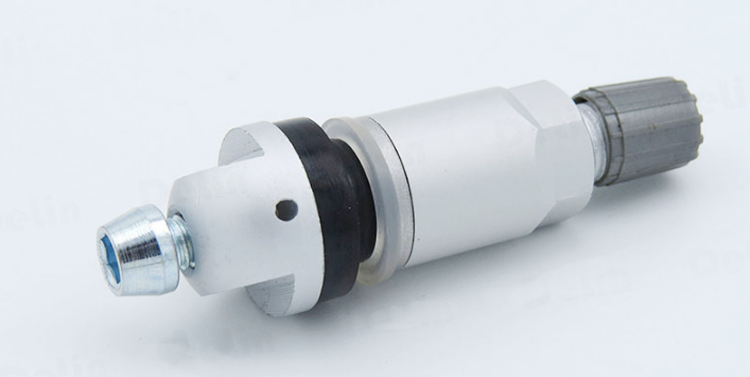

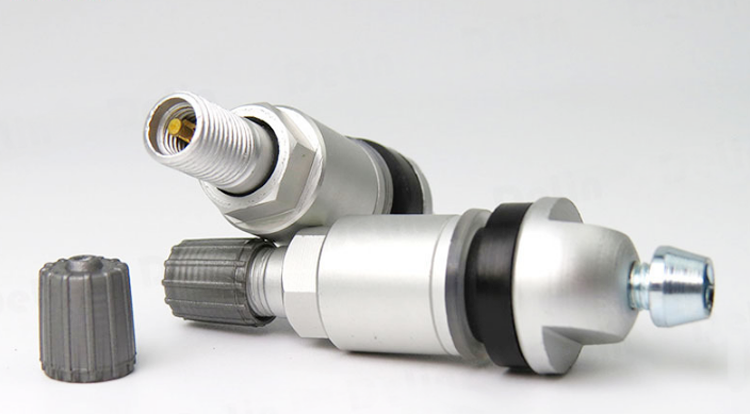

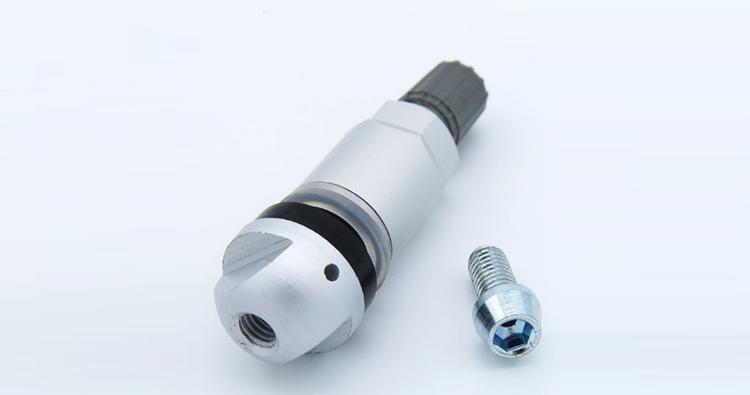

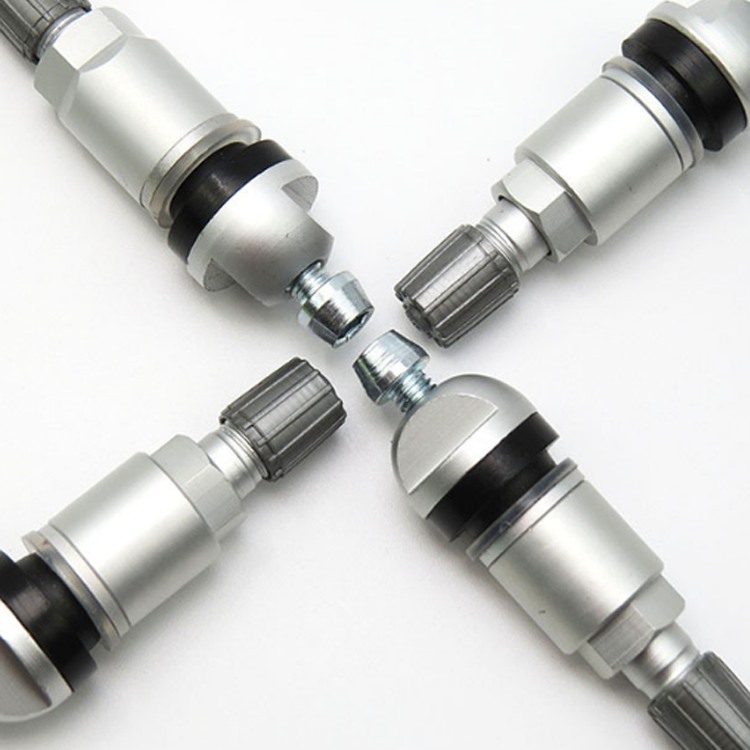

TPMS Valve 05
TPMS Valve 05 is a high-quality replacement valve stem designed for Tire Pressure Monitoring Systems (TPMS). Manufactured from corrosion-resistant aluminum alloy and premium sealing components, it ensures reliable tire pressure monitoring, improved driving safety, and long service life.
Suitable for passenger cars, SUVs, light trucks, and various OEM TPMS sensor platforms.
Technical Specifications
Model: TPMS-05
Types: Tubeless valve
Suitable models: Audi, market retrofit

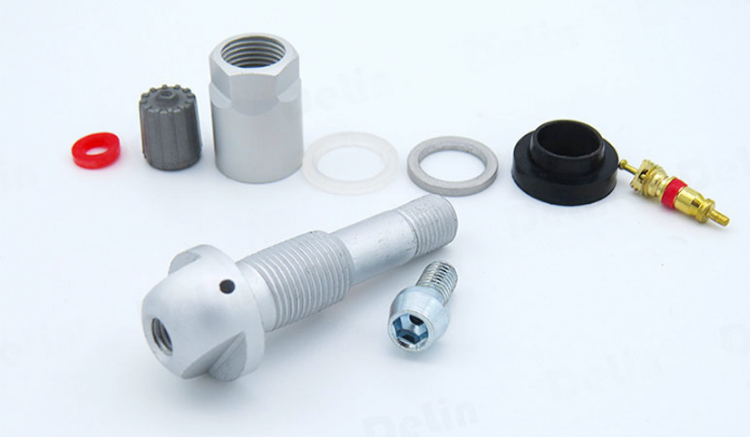

Materials: Aluminum alloy body +EPDM rubber pad + pure copper valve core + nylon plastic cap
Colour: Gray
Product standard: American valve
Thread size: 8V1
Packaging: 100/pp，10 Bag/box
Carton size: 35*26*14cm
N.W: 15g（With screws）
G.W: 16 kg
Applications
TPMS Valve 05 is widely used in:
- Passenger Vehicles
- SUVs
- Pickup Trucks
- Commercial Vehicles
- OEM TPMS Systems
- Aftermarket TPMS Sensors
Why Replace TPMS Valve Stems?
TPMS valve stems are exposed to:
- Road salt
- Moisture
- Heat cycles
- Tire mounting stress
Over time, corrosion and seal aging can cause air leakage and TPMS failure. Industry practice recommends inspection during tire replacement and replacement when wear or corrosion is detected.
How to Replace TPMS Valve 05
Step 1
Remove the tire from the wheel.
Step 2
Remove the old TPMS valve assembly.
Step 3
Clean the valve mounting hole.
Step 4
Install the new TPMS Valve 05.
Step 5
Torque the retaining nut according to manufacturer specifications.
Step 6
Reinstall tire and perform TPMS relearn procedure.
Step 7
Verify tire pressure data and system functionality.
Benefits of TPMS Systems
TPMS technology helps drivers:
- Improve road safety
- Reduce tire wear
- Improve fuel economy
- Prevent under-inflation
- Avoid tire blowouts
Modern TPMS valves combine air retention and electronic monitoring in one assembly.
FAQ Section
What is TPMS Valve 05?
TPMS Valve 05 is a replacement valve stem used with tire pressure monitoring systems to maintain accurate pressure readings and prevent air leaks.
Can TPMS valve stems be replaced separately?
Yes. Many TPMS valve stems can be replaced separately depending on the sensor design.
How often should TPMS valves be replaced?
Inspection is recommended whenever tires are replaced. Replacement is advised when corrosion, leaks, or seal wear are detected.
Are TPMS valves universal?
No. Compatibility depends on sensor type and vehicle application. Always verify fitment before installation.
What material is best for TPMS valves?
Aluminum alloy TPMS valves offer excellent corrosion resistance, lightweight performance, and long service life.
Related Articles
What is the difference between a Schrader valve and a Presta valve?
Why is my tire leaking air specifically from the valve stem?
Get a Bulk Quote / Inquiry:
If you are looking for a reliable supplier or need a custom wholesale price, contact our sales representative instantly via WhatsApp or Email.
This is NOT the complete sensor. Will work on all TPMS sensor part number:
- Description: This Is A Snap-In Style Valve Stem That Includes Valve Stem Core (Already Installed), Valve Stem Cap
- Mounting Screw That Attaches Valve Stem To Sensor (Sensor Not Included).
- Description: Snap-In Rubber Valve Stem, Mounting Screw, Valve Stem Core & Valve Stem Cap
- For use with OEM TPMS systems (manufactured from 2014 onwards)
- When changing a tyre from the rim, worn parts must be replaced
- Prevents failures and resulting more serious, expensive damage
- Suitable for many original vehicle sensors
