TPMS Valve 14 | High Quality Clamp-in Tire Pressure Monitoring Sensor Valve Stem

TPMS Valve-14

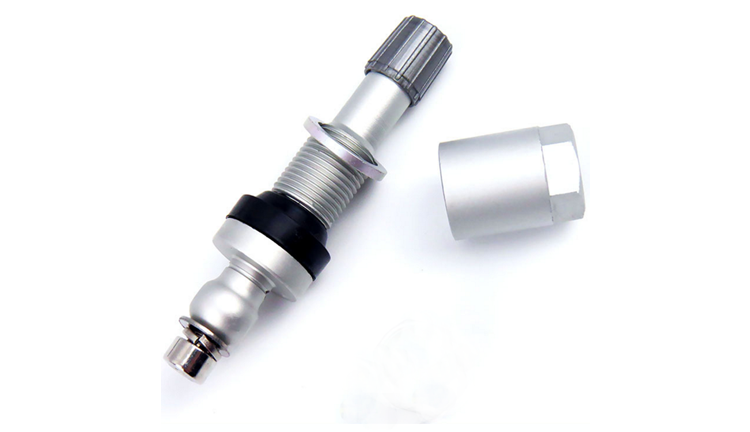

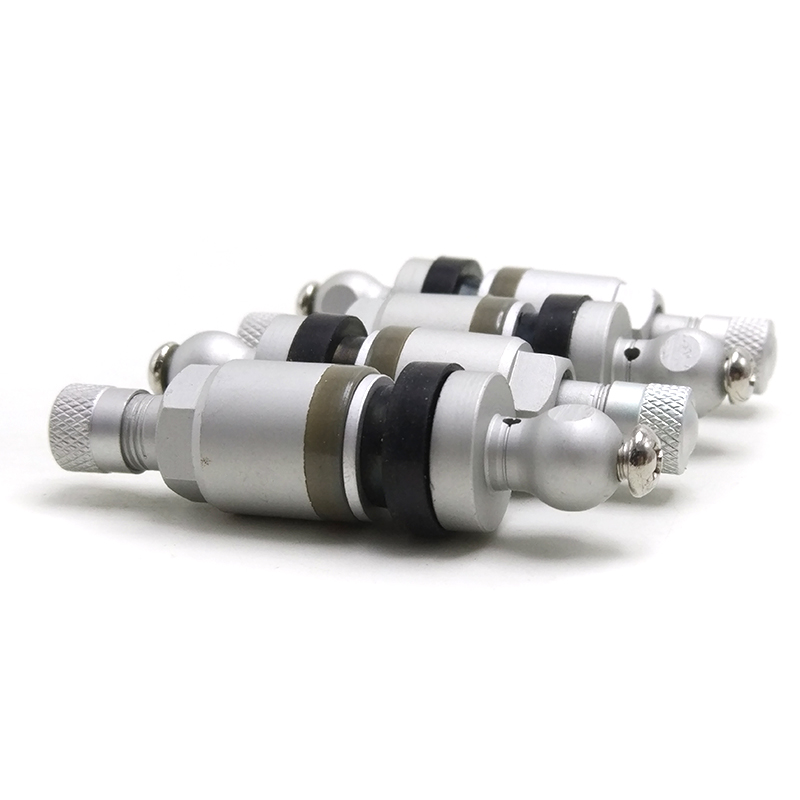

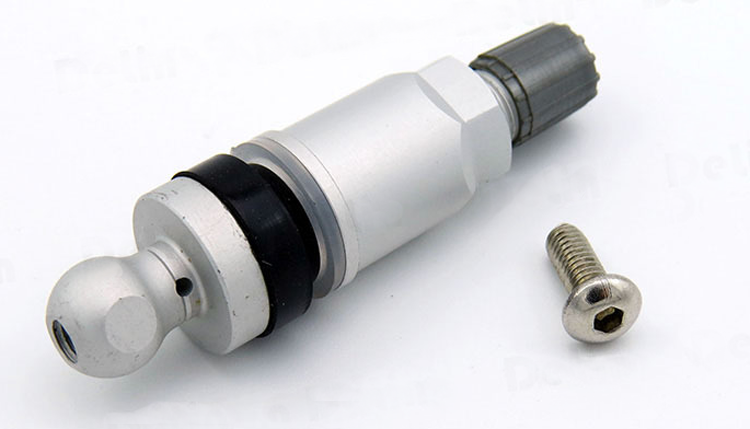

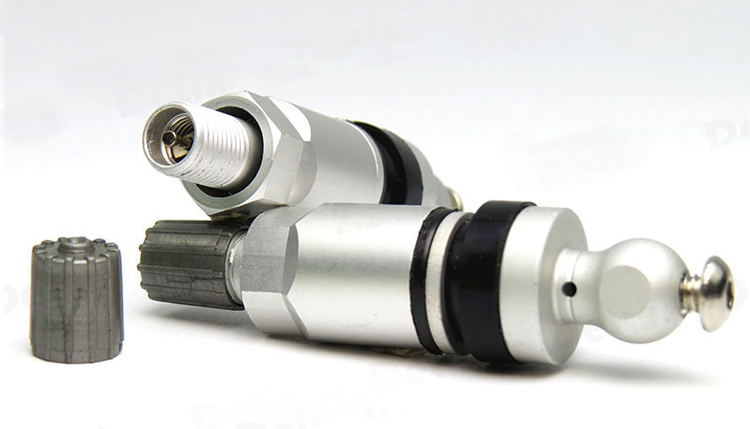

TPMS Valve 14 is a clamp-in tire pressure monitoring system (TPMS) valve stem designed for aluminum alloy wheels. It is used as a replacement component for OEM and aftermarket TPMS systems in passenger cars, SUVs, and light commercial vehicles.

This valve ensures stable air sealing performance, accurate tire pressure monitoring support, and long service life under different road and weather conditions.

 It is widely used by tire service shops, automotive repair centers, and wholesale distributors.

Technical Specifications

Model: TPMS-14

Types: Tubeless valve

Suitable models: General Iron tire pressure monitoring, BMW X5, Mitsubishi, Jeep, Nissan, market retrofit

Materials: Aluminum alloy body +EPDM rubber pad + pure copper valve core + nylon plastic cap

Colour: Gray

Product standard: American valve

Thread size: 8V1

Packaging: 100/pp，10 Bag/box

Carton size: 35*26*14cm

N.W: 13.8.g（With screws）

G.W : 14.8.kg

Application Range

TPMS Valve 14 is suitable for:

• Passenger cars
• SUVs and crossovers
• Light commercial trucks
• OEM TPMS systems
• Aluminum alloy wheel assemblies

Installation Guide

Step 1: Remove old valve stem

Remove the damaged or worn TPMS valve from the wheel rim.

Step 2: Clean rim hole

Ensure the 11.3mm rim hole is clean and free of dust or corrosion.

Step 3: Install TPMS Valve 14

Insert the valve stem into the rim and align it with the TPMS sensor position.

Step 4: Tighten mounting nut

Use correct torque specification to securely fix the valve in place.

Step 5: Inflate and test

Inflate the tire and check for air leakage and sensor signal stability.

Advantages Compared to Rubber Valve Stems

• Longer lifespan than traditional rubber valves
• Better stability at high speed
• Stronger resistance to heat and corrosion
• More reliable support for TPMS sensors
• Suitable for OEM automotive requirements

FAQ

Q1: What is TPMS Valve 14 used for?

TPMS Valve 14 is used in tire pressure monitoring systems to support sensors and maintain airtight sealing in aluminum wheel assemblies.

Q2: Is TPMS Valve 14 universal?

It fits most vehicles using 11.3mm clamp-in TPMS valve systems, including cars, SUVs, and light trucks.

Q3: How long does a TPMS valve last?

Typically 3–5 years depending on driving conditions, road environment, and maintenance.

Q4: Does it include the TPMS sensor?No, TPMS Valve 14 is only the valve stem, not the full sensor unit.

Q5: Can it replace rubber valve stems?

It is designed for TPMS systems and is not a direct replacement for standard rubber valve stems in non-sensor wheels.
