TPMS Valve 17 | Clamp-in Tire Pressure Monitoring Sensor Valve Stem for Aluminum Wheels

TPMS Valve-17

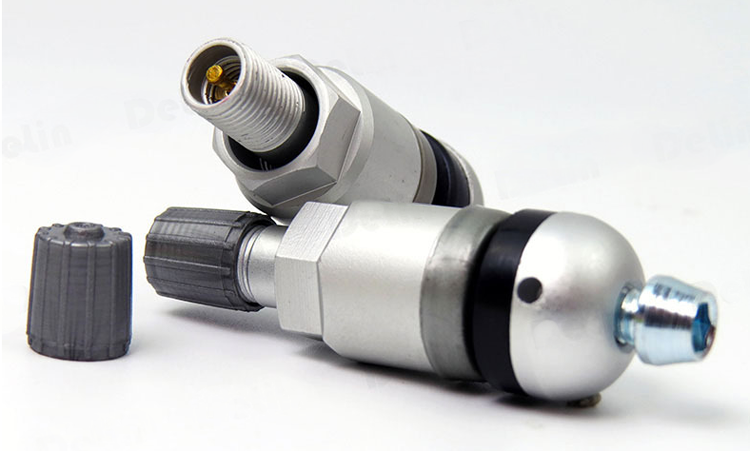

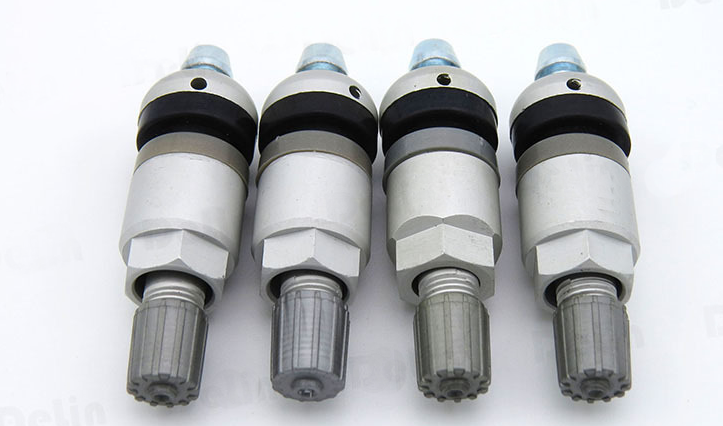

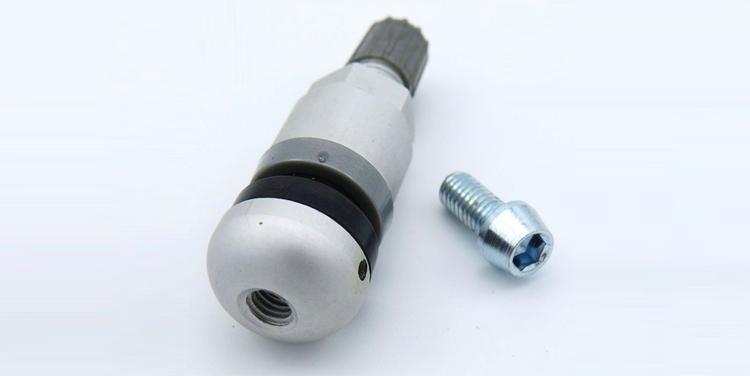

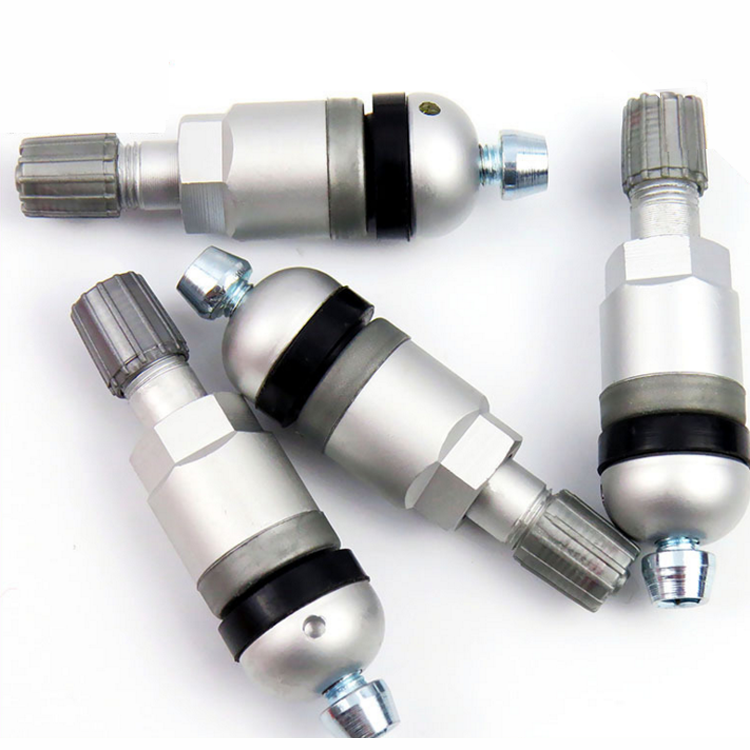

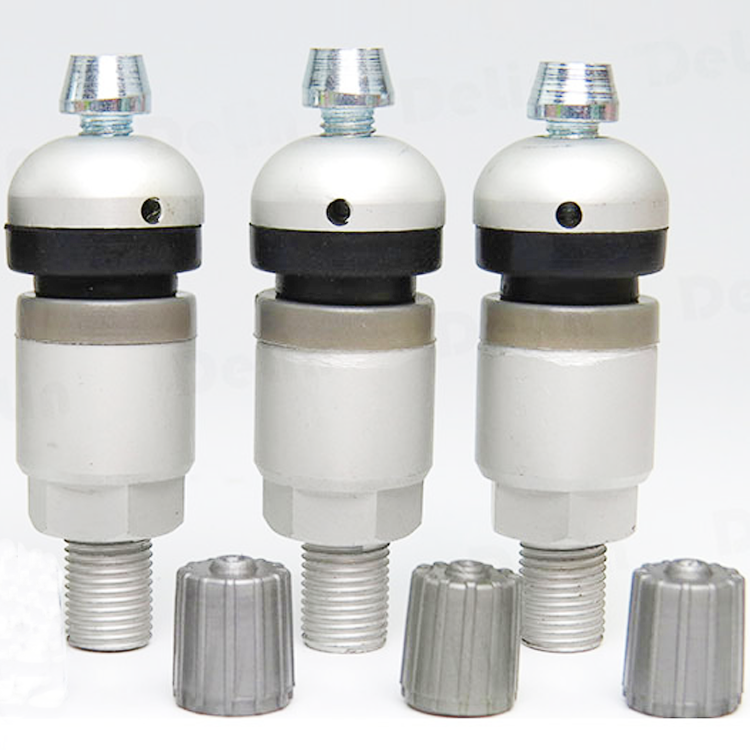

TPMS Valve 17 is a clamp-in tire pressure monitoring system (TPMS) valve stem designed for aluminum alloy wheels. It is used as a replacement part for OEM and aftermarket TPMS sensor systems in passenger cars, SUVs, and light commercial vehicles.

This valve ensures stable air sealing performance, accurate tire pressure monitoring, and long service life under different road conditions.

It is widely used in automotive repair shops, tire service centers, and wholesale distributors.

Technical Specifications

Model: TPMS Valve-17

Types: Tubeless valve

Suitable models: Mercedes-Benz, BMW, Audi, Market Addition

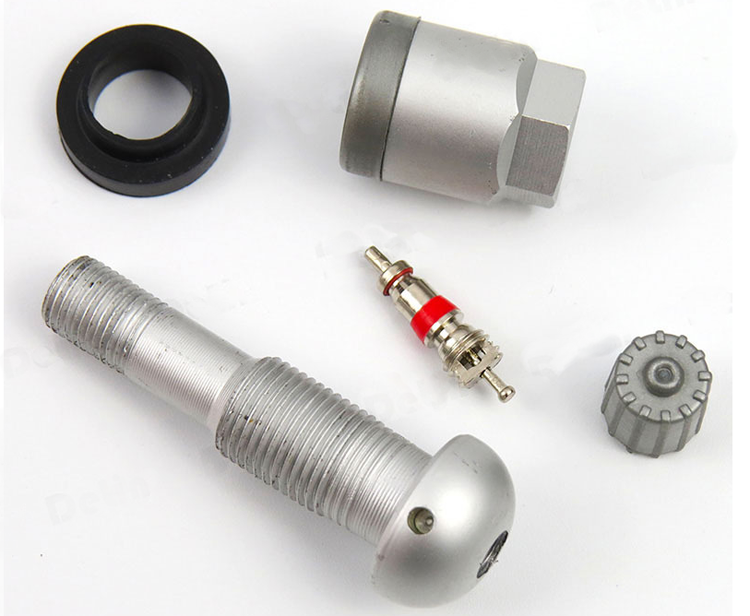

Materials: Aluminum alloy body +EPDM rubber pad + pure copper valve core + nylon plastic cap

Colour:  Gray

Product standard: American valve

Thread size: 8V1

Packaging: 100/pp，10 Bag/box

Carton size: 35*26*14cm

N.W : 14.8.g（With screws）

G.W : 15.8kg



Key Features

• High-strength aluminum alloy construction
• EPDM rubber sealing for airtight performance
• Built-in copper valve core for stability
• Anti-corrosion and heat-resistant design
• Standard 11.3mm rim hole compatibility
• Compatible with OEM TPMS sensors
• Long service life and low maintenance

Application Range

TPMS Valve 17 is suitable for:

• Passenger cars
• SUVs and crossover vehicles
• Light commercial trucks
• OEM TPMS systems
• Aluminum alloy wheel assemblies

Installation Guide

Step 1: Remove old valve stem

Remove the damaged or worn TPMS valve from the wheel rim.

Step 2: Clean rim hole

Ensure the rim hole is clean and matches the 11.3mm standard size.

Step 3: Install TPMS Valve 17

Insert the new valve stem into the rim and align with TPMS sensor position.

Step 4: Tighten mounting nut

Use torque tools to securely fix the valve.

Step 5: Inflate and test

Check air sealing and verify TPMS sensor communication.

FAQ

Q1: What is TPMS Valve 17 used for?

It supports tire pressure monitoring sensors and ensures airtight sealing in alloy wheels.

Q2: Is TPMS Valve 17 universal?

It fits most vehicles using 11.3mm clamp-in TPMS valve systems.

Q3: How long does it last?

Typically 3–5 years depending on usage.

Q4: Does it include the sensor?

No, this is only the valve stem.

Q5: Can it replace rubber valve stems?

Only for TPMS systems, not standard rubber valves.
