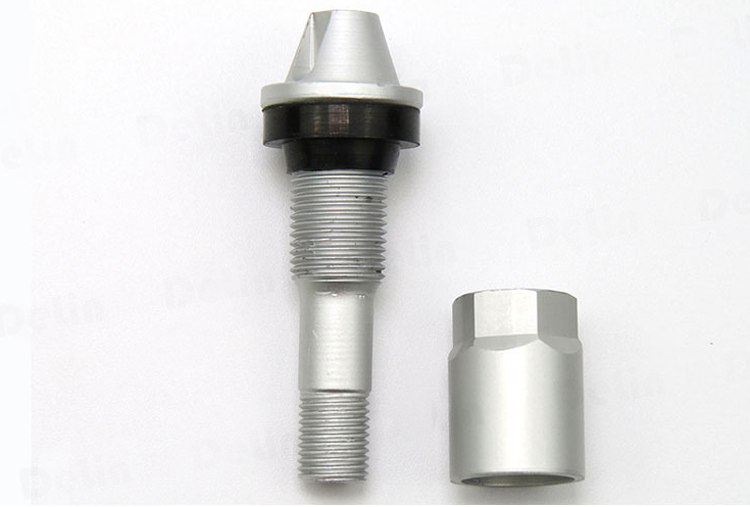

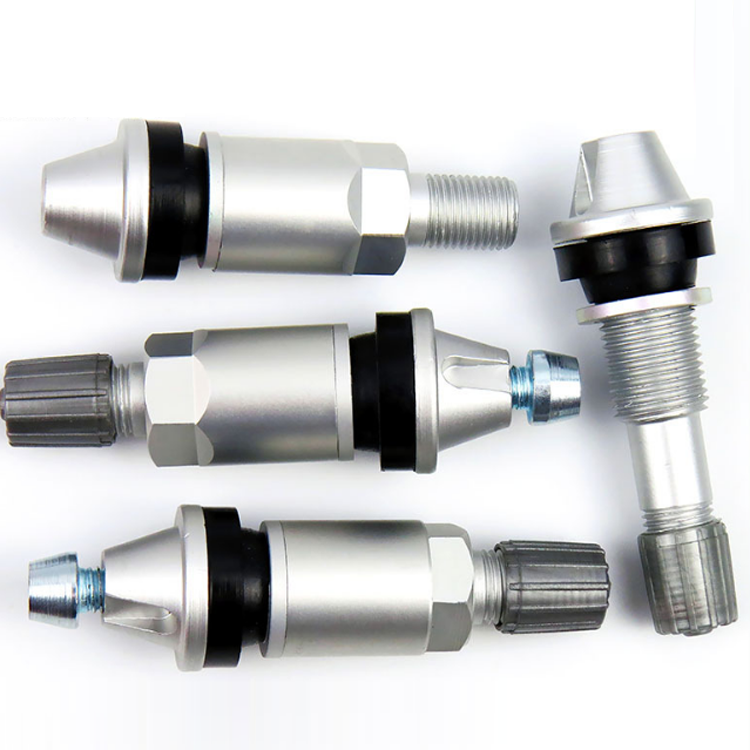

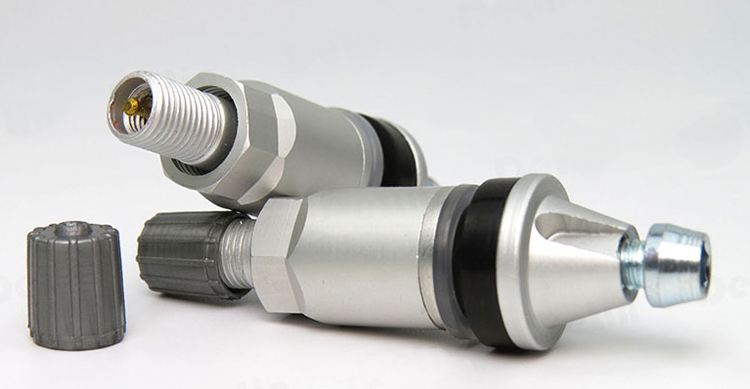

TPMS Valve 08 OEM Replacement Tire Pressure Monitoring Valve Stem

TPMS Valve 08

TPMS Valve 08 is a high-quality OEM replacement valve stem for tire pressure monitoring systems (TPMS). Made from corrosion-resistant aluminum alloy with EPDM rubber seals, it ensures reliable pressure readings and long-lasting performance. Compatible with passenger cars, SUVs, and light trucks.

Technical Specifications

Model: TPMS Valve 08

Types: Tubeless valve

Suitable models: Ferrer, tapered, market retrofit

Materials: Aluminum alloy body +EPDM rubber pad + pure copper valve core + nylon plastic cap

Colour: Gray

Product standard: American valve

Thread size: 8V1

Packaging: 100/pp，10 Bag/box

Carton size: 35*26*14cm

N.W: 13.8g（With screws）

G.W: 14.8kg

Applications

• Passenger Vehicles
• SUVs
• Pickup Trucks
• OEM & Aftermarket TPMS Sensors

Why Replace TPMS Valve Stems?

TPMS valves can deteriorate due to corrosion, heat, and tire mounting stress. Regular replacement ensures accurate tire pressure readings, reduces tire wear, and prevents system failure.

How to Replace TPMS Valve 08

1. Remove the tire from the wheel.
2. Remove the old TPMS valve assembly.
3. Clean the valve mounting hole.
4. Install the new TPMS Valve 08.
5. Torque the retaining nut according to manufacturer specifications.
6. Reinstall tire and perform TPMS relearn procedure.
7. Verify system functionality.

FAQ Section

Q1: What is TPMS Valve 08?
A: TPMS Valve 08 is a metal replacement valve stem for tire pressure monitoring systems, ensuring accurate readings and airtight sealing.

Q2: Can TPMS valve stems be replaced separately?
A: Yes, depending on sensor design. Some TPMS systems allow stem replacement without replacing the sensor.

Q3: How often should TPMS valves be replaced?
A: Inspect at every tire change; replace if corrosion, leakage, or seal wear is detected.

Q4: Are TPMS valves universal?
A: No, compatibility depends on sensor type and vehicle application.

Q5: Best material for TPMS valves?
A: Aluminum alloy is preferred for corrosion resistance, light weight, and durability.

Related Articles

How to Replace a TPMS Valve?

What is the difference between a Schrader valve and a Presta valve?

Why is my tire leaking air specifically from the valve stem?

This is NOT the complete sensor. Will work on all TPMS sensor part number:

• Description: This Is A Snap-In Style Valve Stem That Includes Valve Stem Core (Already Installed), Valve Stem Cap
• Mounting Screw That Attaches Valve Stem To Sensor (Sensor Not Included).
• Description: Snap-In Rubber Valve Stem, Mounting Screw, Valve Stem Core & Valve Stem Cap



• For use with OEM TPMS systems (manufactured from 2014 onwards)
• When changing a tyre from the rim, worn parts must be replaced
• Prevents failures and resulting more serious, expensive damage
• Suitable for many original vehicle sensors
