TPMS Valve -11 | Durable Tire Pressure Monitoring Sensor Valve

TPMS Valve -11

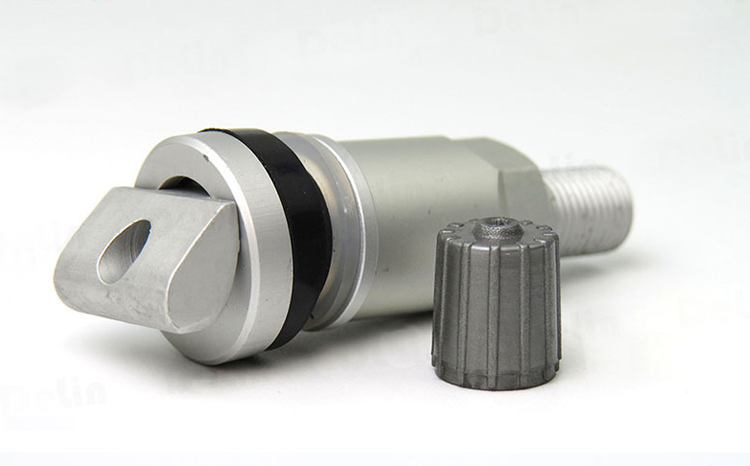

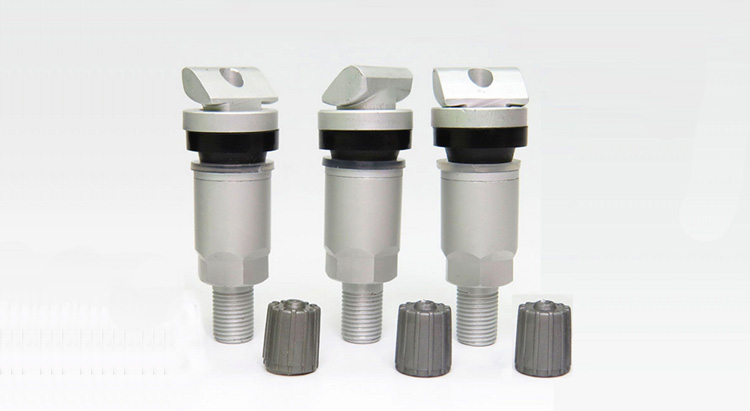

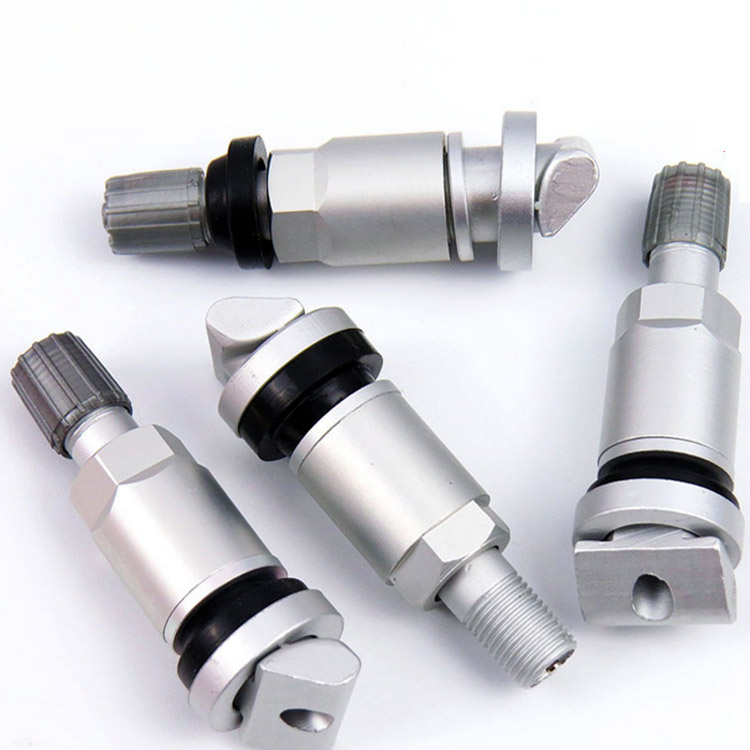

TPMS Valve 11 is a clamp-in tire valve stem designed for tire pressure monitoring systems (TPMS). It is widely used in aluminum alloy wheels for passenger cars, SUVs, and light trucks.

This TPMS valve ensures stable air sealing performance and accurate pressure monitoring support for OEM and aftermarket TPMS sensors. It is a direct replacement for worn, corroded, or damaged valve stems.

Suitable for tire service shops, wholesalers, and automotive parts distributors.

Technical Specifications

Model：TPMS Valve -11

Types： Tubeless valve

Suitable models：New Land Rover, Volvo, Honda, BMW, Ford, Hyundai, Kia, Jaguar

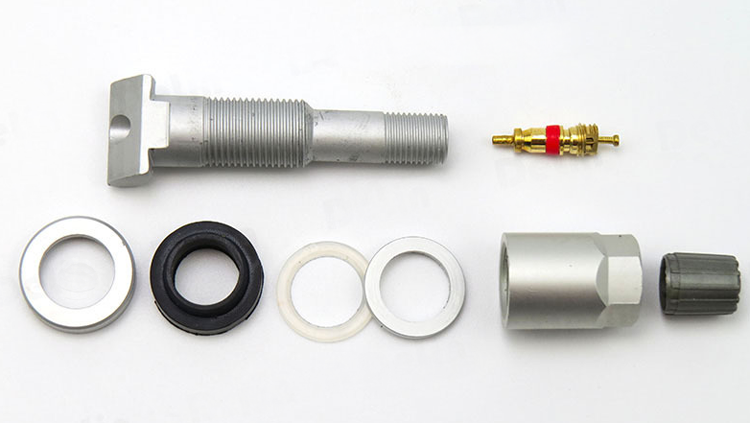

Materials：Aluminum alloy body +EPDM rubber pad + pure copper valve core + nylon plastic cap

Colour： Gray

Product standard： American valve

Thread size：8V1

Packaging：100个/pp，10 Bag/box

Carton size：35*26*14cm

N.W： 12.8.g（With screws）

G.W： 13.8.kg

Key Features of TPMS Valve 11

Easy installation and replacement

High-strength aluminum alloy valve body

Excellent air-tight sealing performance

Compatible with most OEM TPMS sensors

Anti-corrosion design for long service life

Fits 11.3mm rim hole standard

Application Range

TPMS Valve 11 is widely used in:

• Passenger vehicles
• SUVs and crossovers
• Light commercial trucks
• Aluminum alloy wheels
• OEM TPMS sensor systems

Installation Guide

Step 1: Remove old TPMS valve

Remove the damaged or corroded TPMS valve stem carefully from the wheel rim.

Step 2: Clean rim hole

Ensure the 11.3mm rim hole is clean and free from debris or rust.

Step 3: Install TPMS Valve 11

Insert the new valve stem into the rim and align it properly.

Step 4: Tighten valve nut

Use correct torque specification to secure the valve firmly.

Step 5: Inflate and test

Inflate the tire and check for air leakage or sensor error.

FAQ

Q1: What is a TPMS valve stem?

A TPMS valve stem is a component that supports tire pressure monitoring sensors and ensures airtight sealing inside the wheel.

Q2: Is TPMS Valve 11 compatible with all vehicles?

It is compatible with most vehicles using 11.3mm aluminum alloy wheel valve holes.

Q3: How long does a TPMS valve last?

Typically 3–5 years depending on driving conditions and maintenance.

Q4: Can I replace TPMS valve without changing the senso

Yes, in most cases only the valve stem needs replacement, not the sensor.

Q5: What material is TPMS Valve 11 made of?

It is made of high-quality aluminum alloy with rubber sealing components.

Related Articles

How to Replace a TPMS Valve?

What is the difference between a Schrader valve and a Presta valve?

Why is my tire leaking air specifically from the valve stem?

This is NOT the complete sensor. Will work on all TPMS sensor part number:

• Description: This Is A Snap-In Style Valve Stem That Includes Valve Stem Core (Already Installed), Valve Stem Cap
• Mounting Screw That Attaches Valve Stem To Sensor (Sensor Not Included).
• Description: Snap-In Rubber Valve Stem, Mounting Screw, Valve Stem Core & Valve Stem Cap



• For use with OEM TPMS systems (manufactured from 2014 onwards)
• When changing a tyre from the rim, worn parts must be replaced
• Prevents failures and resulting more serious, expensive damage
• Suitable for many original vehicle sensors
