Truck Tire Valve Stems TR545D

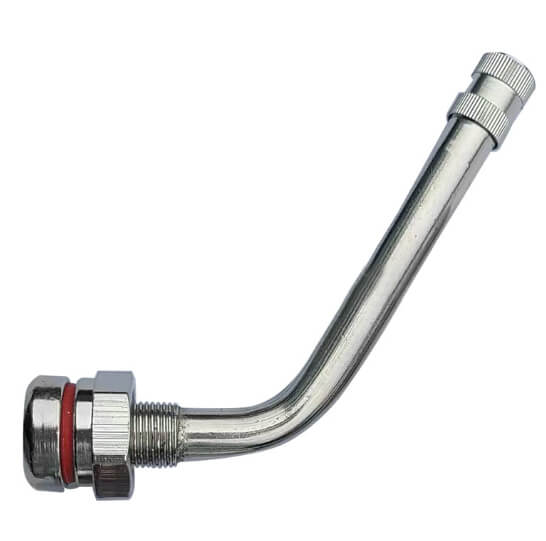

60° Clamp-In Metal Valve Stem for 22.5" & 24.5" Aluminum Truck Wheels
The TR545D truck tire valve stem is a heavy-duty metal clamp-in valve designed for commercial truck and bus wheels. It is widely used on 22.5-inch and 24.5-inch aluminum truck wheels, especially those manufactured by Alcoa and other heavy-duty wheel brands.
Featuring a 60-degree bent design, the TR545D valve stem allows easier access for tire inflation and pressure monitoring while maintaining a secure airtight seal. The clamp-in structure with O-ring sealing ensures reliable performance even under high air pressure and demanding road conditions.
Manufactured from high-strength aluminum or nickel-plated brass, the TR545D valve stem offers excellent corrosion resistance, durability, and long service life. These valve stems are commonly used in truck fleets, logistics vehicles, trailers, and commercial transportation vehicles.
The TR545D is a professional solution for tire service shops, truck maintenance centers, and automotive parts distributors seeking reliable heavy-duty valve stems.
Truck Tire Valve Stems TR544D 60 Degree Valve Stem Replacement for Alcoa 22.5 in 24.5 in Aluminum Wheels
 |  |  |
| Fitment: Truck Tire Valve Stems replacement for Alcoa 22.5 in 24.5 in aluminum wheels | Replace part number: TR545D. | Premium Quality and Rsistent: Made of premium-quality aluminum material, wear-resistant, corrosion-resistant, not easy to age, sturdy, strong anti-impact, heavy, resistent and has a longer life |

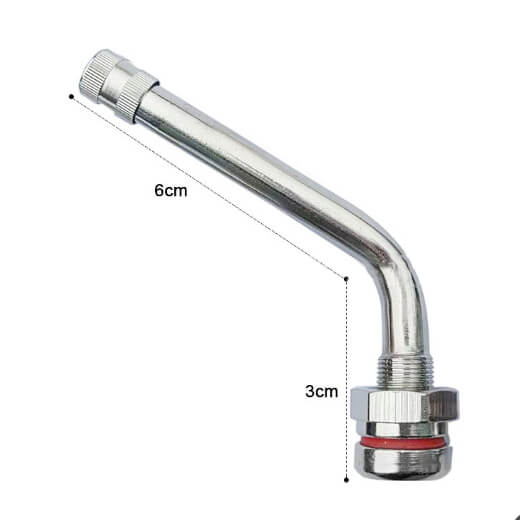

| Size:Size: The outer diameter at the bottom is about 16 mm/0.63 inches, and the total length is about 90 mm/3.54 inches |  |
Key Features of TR545D Truck Valve Stem
60-Degree Angled Design
The 60° bend makes it easier to access the valve for air inflation, pressure checks, and TPMS monitoring.
Heavy-Duty Clamp-In Construction
The clamp-in design provides a secure mechanical seal that prevents air leakage under high tire pressure.
High-Strength Metal Material
TR545D valve stems are typically manufactured from aluminum or nickel-plated brass, ensuring excellent corrosion resistance and durability.
High Pressure Resistance
Designed for commercial truck tires, the valve stem can handle up to approximately 200 PSI tire pressure.
Excellent Sealing Performance

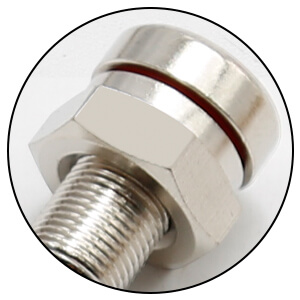

The integrated O-ring sealing system helps prevent air leakage and ensures long-term reliability even in harsh operating environments.

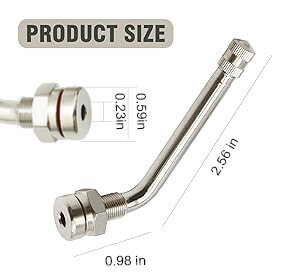

Technical Specifications
| Specification | Details |
|---|---|
| Model | TR545D |
| Valve Type | Clamp-in metal valve stem |
| Bend Angle | 60° |
| Valve Hole Size | 9.7 mm (0.382–0.390 in) |
| Total Length | approx. 90 mm (3.5 in) |

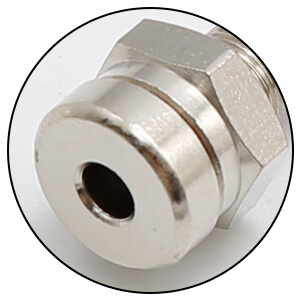

| Base Diameter | approx. 16 mm |
| Maximum Air Pressure | up to 200 PSI |
| Material | Aluminum or nickel-plated brass |
| Fitment | 22.5″ / 24.5″ aluminum truck wheels |
The TR545D valve stem is designed to fit 9.7 mm rim valve holes commonly used on commercial truck wheels.
Vehicle Compatibility
The TR545D truck tire valve stem is commonly used on:
- Semi trucks
- Heavy-duty trucks
- Bus wheels
- Trailer wheels
- Fleet vehicles
- Commercial transport vehicles
It is particularly compatible with Alcoa 22.5″ and 24.5″ aluminum wheels, which are widely used in heavy-duty trucking applications.
Applications
The TR545D valve stem is widely used in professional tire service environments including:
- Truck tire repair shops
- Fleet maintenance facilities
- Logistics company service centers
- Bus maintenance workshops
- Commercial vehicle service stations
These environments require durable components capable of handling high tire pressure and frequent tire servicing.
Advantages of TR545D Metal Valve Stems
Improved Durability
Compared with rubber valve stems, metal clamp-in valve stems provide longer service life and better resistance to heat and pressure.
Better Corrosion Resistance
Nickel-plated or aluminum construction protects against rust and environmental damage.
Secure Airtight Seal
The O-ring sealing design helps maintain stable tire pressure and prevent air leakage.
Suitable for TPMS Systems
Metal valve stems are often recommended when using tire pressure monitoring sensors (TPMS) due to their strength and stability.
Easy Installation
The valve stem can be directly installed into compatible wheel valve holes without modification.
How a Truck Tire Valve Stem Works
A tire valve stem is a small but essential component that allows air to enter and remain inside the tire.
The basic working principle includes:
- Air enters through the valve core during inflation
- The valve core closes automatically to retain air pressure
- The sealing system prevents air leakage between the valve stem and the wheel rim

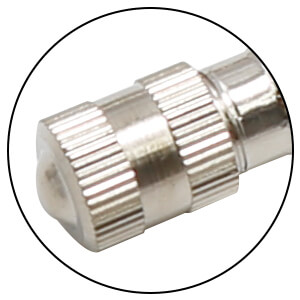

- The valve cap protects the valve core from dust and moisture
For heavy-duty vehicles, metal clamp-in valve stems such as the TR545D are preferred because they can withstand higher pressure and extreme operating conditions.
Why Choose Our TR545D Valve Stems
Choosing high-quality valve stems is critical for maintaining proper tire pressure and vehicle safety.
Our TR545D truck valve stems offer:
- High-quality manufacturing standards
- Reliable sealing performance
- Durable corrosion-resistant materials
- Strict quality inspection
- Competitive factory pricing
- OEM customization services
As a professional manufacturer of tire service accessories, we provide reliable solutions for wholesalers, distributors, and automotive service companies worldwide.
Packaging Information
Standard packaging options include:
- 10 pcs per bag
- 100 pcs per carton
- Bulk packaging available
Customized packaging and private labeling services are also available for distributors.
FAQ – TR545D Truck Tire Valve Stem
What wheels are compatible with TR545D valve stems?
TR545D valve stems are designed for 22.5-inch and 24.5-inch aluminum truck wheels with a 9.7 mm valve hole.
What is the maximum air pressure for TR545D valve stems?
These valve stems are designed for heavy-duty truck tires and can typically handle up to about 200 PSI air pressure.
Are TR545D valve stems compatible with TPMS sensors?
Yes. Metal clamp-in valve stems are commonly used with TPMS systems because they provide stronger structural support.
What is the advantage of a 60-degree valve stem?
The 60-degree bend improves accessibility, making it easier to inflate tires and check tire pressure.
Can TR545D valve stems replace old or damaged valves?
Yes. The TR545D valve stem is designed as a direct replacement for compatible heavy-duty truck wheel valves.
Request a Quote
If you are looking for reliable truck tire valve stems TR545D, we offer factory direct supply and competitive wholesale pricing.
Our services include:
- OEM customization
- Bulk order discounts
- Fast global shipping
- Professional technical support
Contact us today to get a quotation or learn more about our full range of truck tire valves and tire service accessories.
